Sanitization Walking Tunnel

Sanitization Walking Tunnel

Key Features :
  • Tank Capacity 50-200 Liters PVC Tanks Will Be Provided With All Models.
  • Structure Will Be Made Of MS / Aluminum (Powder Coated).
  • Power Supply : 220 V, 50 Hz. Single Phase Supply
  • Control Panel : Automatic Operation Panel

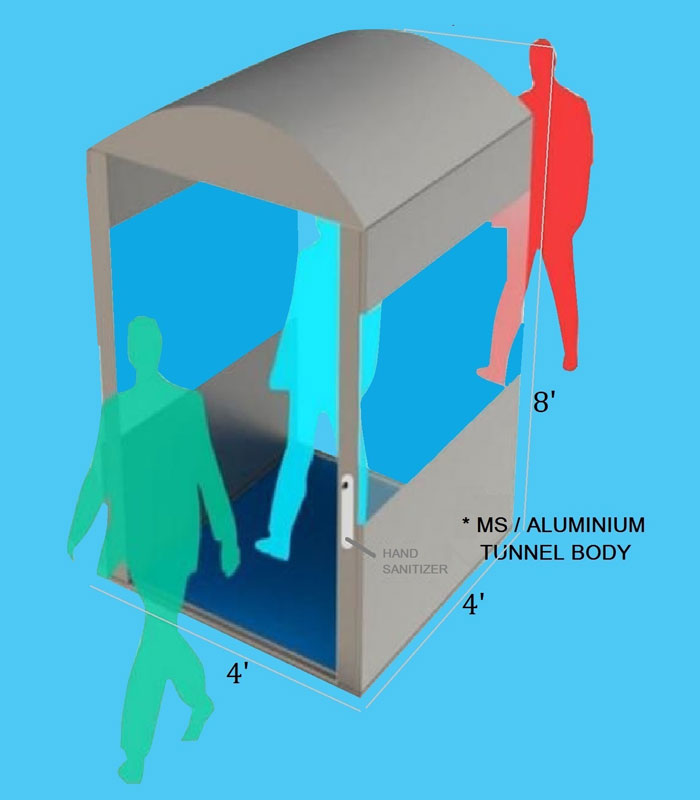

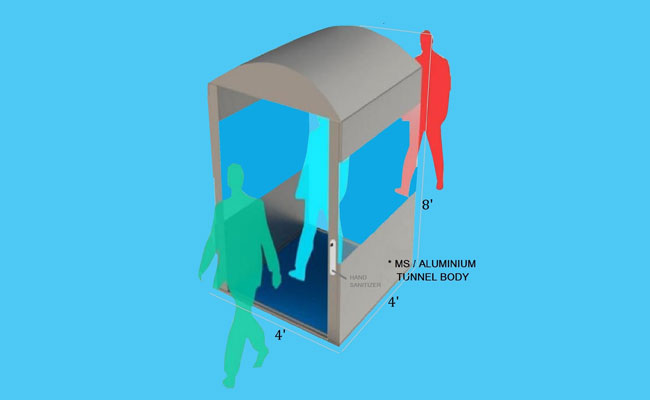

  • External Dimension : 4'(L) x 4/(W) x 8'(H)
  • Pump Of 0.5 HP / 1HP Will Be Provided.
  • All Piping Will Be CPVC 20 MM Pipes.
  • 15-20 Second Sanitation Cycle.
  • Foot Pedal / Sensor / Timer Control.
  • Entry Opening : 3.5' x 7.5'
  • No. Of Nozzles : 4 No. Misting Type
  • 12-15 Person Per Liter.
In-house manufacturing facility. We also manufacture as per customer's requirement.
Human Disinfecting System :

Bio Medical Devices Proudly Announce Launch Of Full Body Automatic Disinfection Tunnel. This Tunnel Helps In Containing The Viruses And Contaminants That Are Over The Clothes And External Weal Of The Person While Entering Into A Premises. Access to good hygiene practices and compliance with sanitation rule is possible with the most advanced hygiene technology. Fully comprehensive industrial hygiene solutions are the perfect answer to all production areas where the risk of containment is a major danger. Our human disinfection systems provide a hygienic and sterile working environment that meets your sanitary need at every stage of production process. Human disinfection systems are high-precision, sustainable, cost-effective, user friendly and easy to maintain.

How it works ?

Whenever a person enters into this disinfection tunnel, sensors fitted at the entry point automatically start a disinfection cycle for a set of time period. Specially designed misting nozzles atomize the solution into very fine mist using high pressure pump connected to disinfectant tank.

Most Effective For:
  • Hospitals
  • Hotels
  • Parks
  • Restaurant
  • Gym
  • Govt. Institute
  • Grocery Stores
  • Airports
  • Workshops
  • Industries
  • Educational Institute
  • Bus & Railway Station
  • Shopping Malls
  • Sports Complexes
  • Hostels
  • Clinics
  • Stadium Entrance
  • Banks etc
